JL/JLU/JT Ultimate Clearance Front Inner Fender Liner (3.6L, 2.0L) - Nemesis Industries

Close-up of the Falcon 3.3 shock reservoir and adjuster beside the black Nemesis inner fender liner.

Side view of a white Jeep Rubicon showing the black inner fender liner above its front tire.

Install Time

Estimated 2-3 Hour Install

compaitable with

JL JLU JT

This may vary depending on experience

Download Install Guide

SKU: 145710

Instant access

PDF

$469.00

Shipping calculated at checkout.

Finish Options — Bare

Finish Options

Bare Bare

Semi-Gloss Black Powder Coat (Cardinal BK-08) Semi-Gloss Black Powder Coat (Cardinal BK-08)

Textured Black Powder Coat (Cardinal BK-59) Textured Black Powder Coat (Cardinal BK-59)

Precision-designed and 100% Made in USA.

Built around your specific engine bay to maximize clearance and coverage.
Built from .090" 5052 aluminum
Powder coat ready
Inspected for quality and finished to Nemesis's high standards
Fits Falcon shocks for your vehicle application
Works with factory and most aftermarket fenders
Requires body trimming for additional clearance
Sold as a pair
Installation hardware included — need a replacement kit? 145710-02 Hardware Kit (JL/JLU/JT Ultimate Clearance Front Inner Fender Liner) →

[{"id":52718649540973,"title":"Bare","option1":"Bare","option2":null,"option3":null,"sku":"145710","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JL\/JLU\/JT Ultimate Clearance Front Inner Fender Liner (3.6L, 2.0L) - Bare","public_title":"Bare","options":["Bare"],"price":46900,"weight":7711,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52718649573741,"title":"Semi-Gloss Black Powder Coat  (Cardinal BK-08)","option1":"Semi-Gloss Black Powder Coat  (Cardinal BK-08)","option2":null,"option3":null,"sku":"145711","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JL\/JLU\/JT Ultimate Clearance Front Inner Fender Liner (3.6L, 2.0L) - Semi-Gloss Black Powder Coat  (Cardinal BK-08)","public_title":"Semi-Gloss Black Powder Coat  (Cardinal BK-08)","options":["Semi-Gloss Black Powder Coat  (Cardinal BK-08)"],"price":55900,"weight":7711,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52718649606509,"title":"Textured Black Powder Coat (Cardinal BK-59)","option1":"Textured Black Powder Coat (Cardinal BK-59)","option2":null,"option3":null,"sku":"145712","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"JL\/JLU\/JT Ultimate Clearance Front Inner Fender Liner (3.6L, 2.0L) - Textured Black Powder Coat (Cardinal BK-59)","public_title":"Textured Black Powder Coat (Cardinal BK-59)","options":["Textured Black Powder Coat (Cardinal BK-59)"],"price":55900,"weight":7711,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Install Time

Estimated 2-3 Hour Install

compaitable with

JL JLU JT

This may vary depending on experience

Download Install Guide

SKU: 145710

Instant access

PDF

Maximum Tire Clearance for Your Build

When you're running oversized tires on your JL, JLU, or JT, the factory inner fender liner can get in the way. Our Ultimate Clearance Front Inner Fender Liner addresses that problem with a design built around tire clearance and engine bay coverage. Every curve, cut, and angle serves a purpose: giving your tires room to work as your suspension articulates. Actual clearance depends on your lift height, wheel offset, and suspension setup, so the liner is one part of the complete build. Installation replaces the stock plastic liner with aluminum using the included mounting hardware. Because the factory liner is attached to the flare, you'll need to cut out and remove the OEM liner before fitting the replacement. Plan on 1–1.5 hours per side. Whether you're building a daily-driven trail rig or a dedicated rock crawler, this liner puts clearance at the center of the design.

Close-up of a copper-colored vented inner fender liner above a Fox 3.0 shock, reservoir hoses, and coil spring.

5052 Aluminum, Precision-Cut for Your Jeep

The Ultimate Clearance Front Inner Fender Liner starts with .090-inch 5052 aluminum. That material choice replaces the factory plastic liner with an aluminum panel designed around your Jeep's engine bay. The design brings clearance and coverage together, rather than removing the liner and leaving the space open. Each liner is waterjet CNC-cut for precision-finished edges and clean fitment. Those manufacturing details matter when you're replacing factory components: the shape, edges, and mounting points all contribute to how the finished assembly fits your build. The aluminum construction is part of that design, alongside the contours that make room for your tires and suspension. Choose bare aluminum if you want the unfinished look, or select semi-gloss black or textured black powder coat. You get the same .090-inch 5052 aluminum construction with each finish option, so the choice comes down to how you want to finish your Jeep.

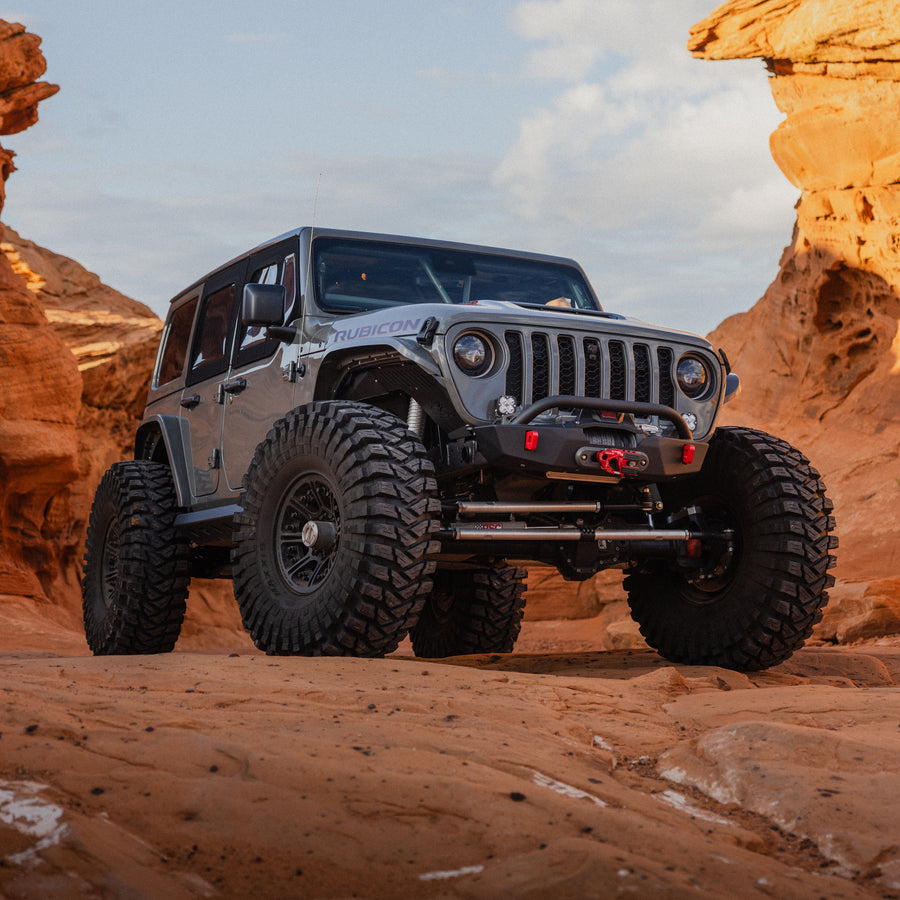

Gray Jeep on rocky terrain with a silver Nemesis front inner fender liner visible above the tire.

Designed to Work with Falcon Shocks

This liner is designed to work with your Jeep's suspension and engine bay, with applications for JL, JLU, and JT builds in the supported 2.0L Turbo and 3.6L Pentastar configurations. Running Falcon shocks? The Ultimate Clearance design accommodates Falcon shocks, including the larger reservoir-style 3.3 Fast Adjust models. That gives you a liner option built with those suspension components in mind, rather than treating shock clearance as an afterthought. The liners are sold as a pair with mounting hardware included, so you can replace both front factory liners as part of the same installation. Choose your finish based on the build you're running: bare aluminum for the raw metal look, semi-gloss black for a smooth appearance, or textured black for a textured finish. If a custom color is part of your plan, the bare aluminum option gives you a starting point for powder coating.

JL/JLU/JT Ultimate Clearance Front Inner Fender Liner (3.6L, 2.0L)

SKU# 145710

JL/JLU/JT Ultimate Clearance Front Inner Fender Liner (3.6L, 2.0L)

FITMENT GUIDE

COMPATIBLE VEHICLES:

• Jeep Wrangler JL (2 Door)
• Jeep Wrangler JLU (4 Door)
• Jeep Gladiator JT

MODEL YEARS:

2018 - Current

WEIGHT SHIPPED:

22 lbs

WEIGHT INSTALLED:

18 lbs

TOOLS REQUIRED:

Nutsert tool with a ¼" - 20 mandrel (Available on our website)

"W" size drill bit (Available on our website)

INSTALL NOTES:

Level 3: Moderate

Requires mechanics tools. May require drilling and/or cutting. Specialized tools and removal of factory components may be required.

INSTALL NOTES:

Level 3: Moderate

Requires mechanics tools. May require drilling and/or cutting. Specialized tools and removal of factory components may be required.

Nemesis Jeep Gladiator crawling over red rocks with its front inner fender liner and suspension visible.

Silver Jeep Gladiator climbing a rock ledge with its Nemesis front inner fender liner and suspension exposed.

Silver Jeep Gladiator straddling a rock crevice, showing front suspension articulation and inner fender liner.

Black vented inner fender liner and Falcon shock above the front tire of a white Jeep Rubicon.

Black Nemesis front inner fender liner with vent slots around a Falcon 3.3 shock on a white Jeep.

Silver Nemesis inner fender liner surrounding a Falcon 3.3 shock and coil spring in a Jeep front wheel well.

Frequently Asked Questions

Designed for maximum tire clearance on JL/JLU/JT builds running 37-inch tires with aggressive offsets, and most 40-inch setups with proper lift and backspacing. Real-world clearance depends on your lift height, wheel offset, and suspension setup.

These liners are designed for Jeep Wrangler JL and JLU and Gladiator JT applications in the supported 2.0L Turbo and 3.6L Pentastar configurations. They are not compatible with the 392 V8 or diesel; those engine bays require different liners.

Yes. The factory liner is attached to the flare, so you must cut out and remove the OEM liner before bolting in the replacement with the included hardware.

Plan on 1–1.5 hours per side. Tools include a drill, nut insert tool, socket set, trim panel tool, and Phillips screwdriver. Installation includes cutting out and removing the factory liner.

Yes. The Ultimate Clearance design is engineered to clear Falcon shocks, including the larger reservoir-style 3.3 Fast Adjust models. Fox, King, and other aftermarket shock fitment depends on the specific application and shock configuration.
